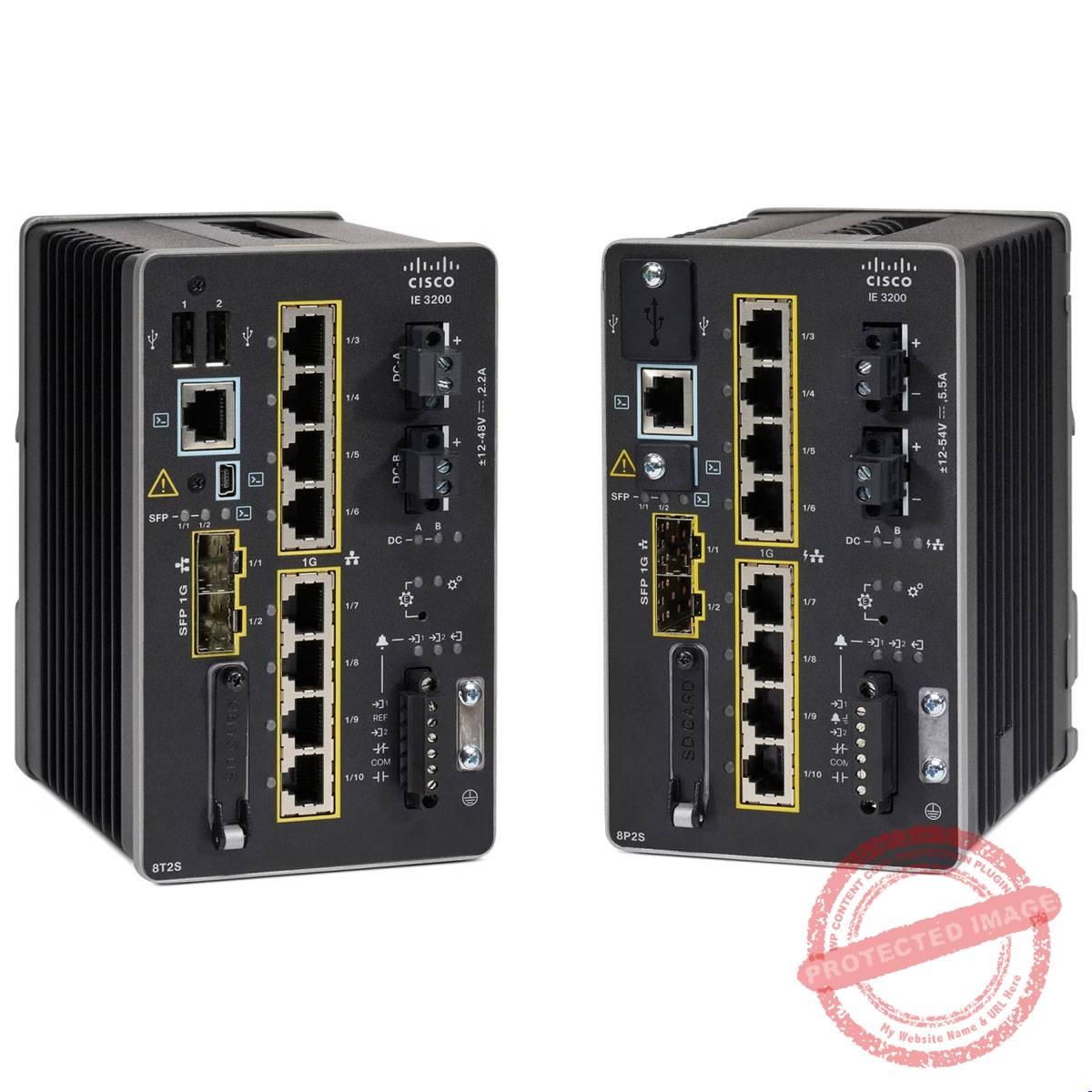

Cisco IE-3200-8P2S-E Catalyst IE3200 with 8 GE PoE+ & 2 GE SFP, Fixed System, NE
Cisco – IE-3200-8P2S-E – Catalyst IE3200 with 8 GE PoE+ & 2 GE SFP, Fixed System, NE
Product information:
| General | ||
|---|---|---|
| Device Type: | Switch – 8 ports – Managed | |
| Enclosure Type: | DIN rail mountable | |
| Subtype: | Gigabit Ethernet | |
| Ports: | 8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP | |
| Power Over Ethernet (PoE): | PoE+ | |
| PoE Budget: | 240 W | |
| Capacity: | SPAN sessions: 256 IGMP groups: 1000 STP instances: 128 |
|
| MAC Address Table Size: | 8K entries | |
| Routing Protocol: | IGMPv2, IGMP, IGMPv3, MSTP, RSTP, STP | |
| Remote Management Protocol: | SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, TFTP, SSH, SCP, NTP | |
| Authentication Method: | Secure Shell (SSH), RADIUS, TACACS+ | |
| Features: | DHCP support, BOOTP support, ARP support, IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, STP support, DHCP snooping, ACL support, QoS, RADIUS support, DHCP server, DAI, PVST+, UDLD, IPv4 support, fanless, LACP support, LLDP support, DHCP relay, Port Security, RSPAN, MIB, 802.1x authentication, PTP, IGMP filtering, IP source guard, REP, SmartPort technology, ICMP, CIP Sync (IEEE 1588), IGMP querier, Voice VLAN, Guest VLAN, UDP, VTP v.3, BPDU Guard, Dying Gasp, VTP v.2 | |
| Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 1588v2 | |
| RAM: | 2 GB | |
| Flash Memory: | 1.5 GB | |
| Built-in Devices: | SD card reader | |
| Expansion / Connectivity | ||
| Interfaces: | 8 x 1000Base-T RJ-45 PoE+ 2 x 1000Base-X SFP 1 x serial (RS-232) RJ-45 1 x mini-USB Type B |
|
| Expansion Slots: | 1 (total) / 1 (free) x SD Memory Card | |
| Power | ||
| Power Device: | Internal power supply | |
| Power Redundancy: | Yes | |
| Voltage Required: | DC 9.6 – 60 V | |
| Electric Current Required: | 5.5 A | |
| Power Consumption Operational: | 35 Watt | |
| Miscellaneous | ||
| MTBF: | 613,125 hours | |
| Compliant Standards: | EN55024, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-6-2, EN 61000-4-8, IEC 60950-1, EN 61000-6-4, IEC 60068-2-30, IEC 60068-2-27, EN 61326-1, EN 61000-4-16, EN 61000-4-29, IEC 60068-2-14, IEC 60068-2-78, EN 50121-4, VCCI Class A, CISPR 11 class A, EN 61000-4-10, EN 61000-4-18, IEC 61850-3, FCC CFR47 Part 15 B Class A, IEEE 1613, CNS 13438 Class A, EN 300 386, KN35, UL/CSA60950-1, AS/NZS CISPR 32 Class A, KN32 Class A, IEC 62368-1, IEEE 1588, EN 60068-2-52, EN 60068-2-60, EN 60079-15, CB 60950-1, IEC 60079-0, IEC 60079-15, EN 60079-0, EN 55032/CISPR 32 Class A, CISPR 35, EN 61000-4-17, UL 121201, UL/CSA/EN 62368-1, EN 61850-3, UL/CSA 61010-2-201, IEC/EN 61010-2-201, UL/CSA 60079-0, UL/CSA 60079-15 | |
| Dimensions & Weight | ||
| Width: | 9.14 cm | |
| Depth: | 13.5 cm | |
| Height: | 15.2 cm | |
| Weight: | 1.7 kg | |
| Environmental Parameters | ||
| Min Operating Temperature: | -40 °C | |
| Max Operating Temperature: | 70 °C | |
| Humidity Range Operating: | 5 – 95% (non-condensing) | |
| Min Storage Temperature: | -40 °C | |
| Max Storage Temperature: | 85 °C | |
| Humidity Range Storage: | 5 – 95% (non-condensing) |
