Specification Summary
| Parameter | Specification Details |
|---|---|

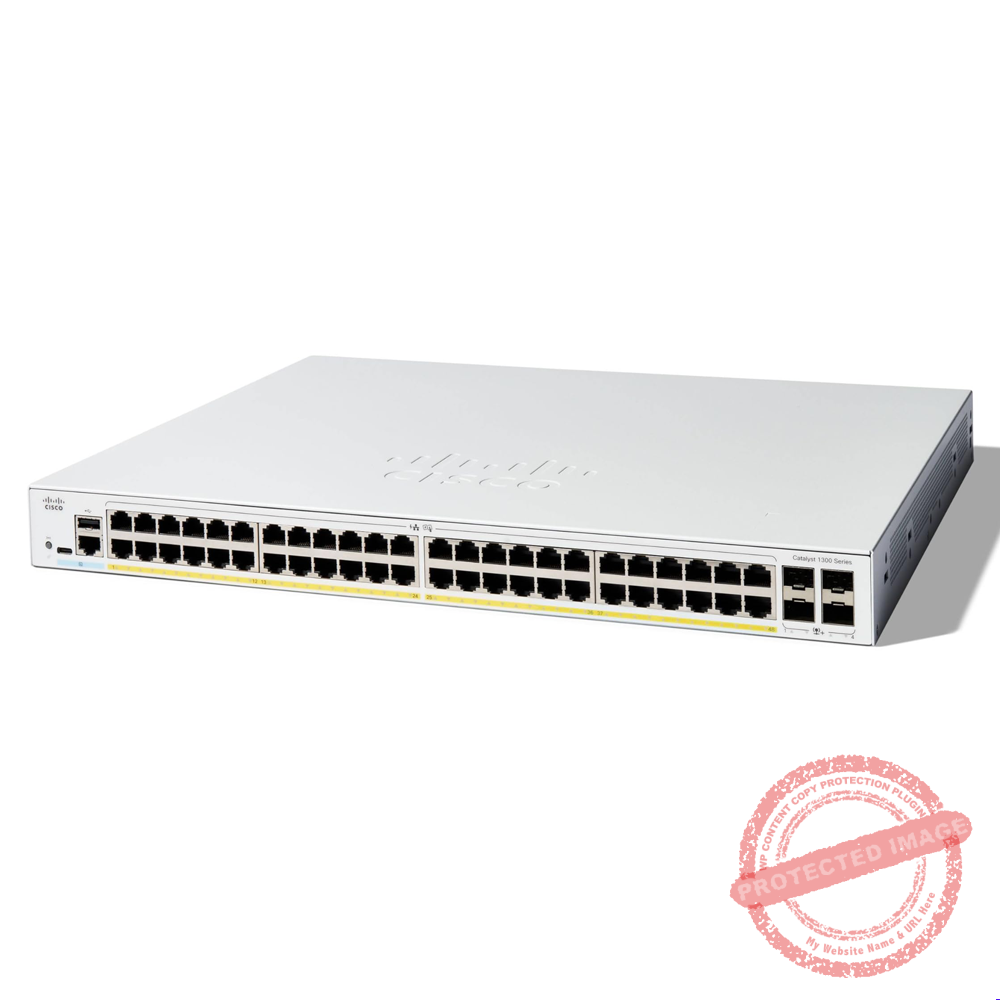

| Model Name | Cisco Catalyst C1300-48P-4X |
| Product Type | Managed Layer 3 Gigabit Ethernet PoE+ Switch with 10G uplinks |
| Downlink Ports | 48 × 10/100/1000 Mbps RJ-45 PoE+ (IEEE 802.3af/at compliant) |
| Uplink Ports | 4 × 10 GbE SFP+ uplinks |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 130.95 Mpps |
| Packet Buffer | 2 MB (shared) |
| MAC Address Table | 16,000 entries |
| PoE Standard | IEEE 802.3af/at (PoE+) |
| Total PoE Budget | 370 W |
| Per-Port Power Max | 30 W |
| Jumbo Frames | Up to 9,000 bytes |
| QoS Queues | 8 hardware queues per port (WRR + Strict Priority) |
| VLAN Support | 255 active VLANs, 802.1Q tagging, Voice VLAN |
| Spanning Tree | 802.1D STP, 802.1w RSTP, 802.1s MSTP, PVST+ |
| Link Aggregation | IEEE 802.3ad LACP (up to 4 groups) |
| Multicast Control | IGMP Snooping v1/v2/v3 |
| Layer 3 Routing | IPv4 and IPv6 static routing |
| DHCP Relay | Supported |
| Access Control | ACL (L2–L4) Filtering |
| Authentication | IEEE 802.1X (RADIUS) |
| Security Features | Port Security, DHCP Snooping, BPDU Guard, DoS Prevention |
| Traffic Management | 802.1p CoS/DSCP trust and remark, Ingress/Egress rate limiting |
| Management Interface | Web UI, Cisco Business Dashboard, Mobile App |
| Management Protocols | SNMP v1/v2c/v3, HTTP/HTTPS, TFTP, DHCP |
| Logging & Monitoring | Syslog, Event Logs |
| Cooling Design | Fanless (silent operation) |
| Power Supply | Internal AC (100–240 VAC, 50/60 Hz) |
| Power Consumption | ≈ 35 W (no PoE load), ≈ 450 W (max PoE load) |
| Operating Temperature | 0 °C – 50 °C (32 °F – 122 °F) |
| Storage Temperature | −25 °C – 70 °C (−13 °F – 158 °F) |
| Operating Humidity | 10 – 90% RH (non-condensing) |
| MTBF | ≈ 1,650,000 hours |
| Form Factor | Desktop / 1U Rack-mount |
| Dimensions (W × D × H) | 440 × 270 × 44 mm (17.3 × 10.6 × 1.7 in) |
| Weight | 3.60 kg (7.94 lb) |
| Certifications | UL 62368, CSA 22.2, CE, FCC Class A |
| Warranty | Cisco Limited Lifetime Hardware Warranty |
